MET (CL20) Metallized Polyester Film Capacitor (Tubular)
金屬化聚酯薄膜電容器（管型）
★FEATURE 特點：
· Non-inductive construction ·無感型結構
· Self-healing ·自愈性
· High property moisture resistance ·高耐濕特性
· High capacitance value available and compact size ·可獲得高容量且尺寸緊湊
★APPLICATION 用途：
· Coupling decoupling by-passing and timing circuit ·耦合、離合、旁路及定時回路
· Automatic control system Communication equipment ·自動控制系統及通訊設備
· Charging/discharging ,lighting, noise suppression and ·充放電、照明、噪音抑制及頻率調制
frequency modulation
★SPECIFICATIONS技術要求：
|
DIELECTRIC
介質
|
Polyester film
聚脂薄膜
|
|
ELECTRODES
電極
|
Vacuum evaporated metal
真空蒸鍍金屬
|
|
COATING
包封
|
Out wrapped with Mylar tape and ends sealed with epoxy resin
瑪拉膠帶包封，環氧樹脂封裝
|
|
LEAD
導線
|
Axial leads of tinned wire
軸向鍍錫導線
|
|
REFERENCE STANDARD
引用標準
|
IEC 384-2 grade 1；SJ/T10873-1996
|
|
CLIMATIC CATALOGUE
氣候類別
|
40/85/21 (From 85℃ up to 105℃ with derating voltage 1.25%/℃)
(85℃至105℃間按1.25%/℃遞減電壓)
|
|
CAPACITANCE VERSUS
RATED VOLTAGE(UR)
靜電容量與額定電壓
|
0.01μF-25μF/100VDC； 0.01μF-18μF/250VDC
0.01μF-6.8μF/ 400VDC； 0.01μF-2.2μF/630VDC
|
|
CAPACITANCE TOLERANCE
靜電容量誤差
|
M=±20% K=±10% J=±5%
|
|
DISSIPATION FACTOR
（TANGENT OF LOSS）
散逸因素（損耗角正切）
|
C≤1.0μF DF≤0.8%
C＞1.0μF DF≤1.0% （1 minute at 20℃）
|
|
VOLTAGE PROOF
耐電壓
|
1.6*UR Unit:VDC (5s at 20℃)
|
|
INSULATION RESISTANC
絕緣電阻
|
C≤0.33μF IR≥15,000MΩ
C＞0.33μF IR*C≥3000S (1minute at 20℃ and RH≤65%)
|
|
ENDURANCE
耐久性
|
1000 hours with 125% of rated voltage at 85℃,After the test
85℃試驗溫度下，125%之額定電壓1000小時，試驗完成后:
△C/C≤8%；△DF≤0.30%（C＞1μF）；
△DF≤0.50%（C≤1μF）;
IR≥0.5% of the specified value （標稱值）. （20℃ 1KHz）
|

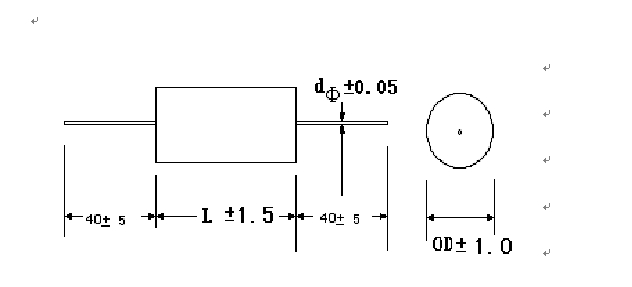

★OUTLINE DRAWING 外形圖 ★PICTURE 實物圖
★DIMENSION 尺寸 UNIT 單位: mm
(SPECIAL SIZE OR ITEMS ON REQUEST) 可依需求制作特殊規格
|
CAPACITANCE
|
100VDC
|
250VDC
|
400VDC
|
630VDC
|
|
SYM
BOL
|
μF
|
L
|
OD
|
dΦ
|
L
|
OD
|
dΦ
|
L
|
OD
|
dΦ
|
L
|
OD
|
dΦ
|
|
103
|
0.010
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.5
|
0.6
|
|
153
|
0.015
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
7.0
|
0.6
|
|
223
|
0.022
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
7.0
|
0.6
|
|
333
|
0.033
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
8.0
|
0.6
|
|
473
|
0.047
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
9.0
|
0.6
|
|
683
|
0.068
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
21.0
|
9.0
|
0.8
|
|
104
|
0.10
|
16.0
|
6.0
|
0.6
|
16.0
|
6.0
|
0.6
|
21.0
|
8.0
|
0.8
|
21.0
|
10.0
|
0.8
|
|
154
|
0.15
|
16.0
|
6.0
|
0.6
|
16.0
|
5.5
|
0.6
|
21.0
|
9.0
|
0.8
|
26.0
|
11.0
|
0.8
|
|
224
|
0.22
|
16.0
|
6.0
|
0.6
|
16.0
|
8.5
|
0.6
|
21.0
|
9.5
|
0.8
|
26.0
|
13.0
|
0.8
|
|
334
|
0.33
|
16.0
|
6.0
|
0.6
|
21.0
|
8.0
|
0.8
|
26.0
|
10.0
|
0.8
|
32.0
|
14.0
|
0.8
|
|
474
|
0.47
|
16.0
|
6.5
|
0.6
|
21.0
|
9.0
|
0.8
|
26.0
|
12.0
|
0.8
|
32.0
|
15.0
|
0.8
|
|
684
|
0.68
|
21.0
|
8.5
|
0.8
|
26.0
|
9.0
|
0.8
|
32.0
|
12.5
|
0.8
|
32.0
|
18.0
|
0.8
|
|
105
|
1.0
|
21.0
|
10.0
|
0.8
|
26.0
|
11.0
|
0.8
|
32.0
|
15.0
|
0.8
|
32.0
|
20.0
|
0.8
|
|
155
|
1.5
|
26.0
|
10.5
|
0.8
|
26.0
|
12.0
|
0.8
|
32.0
|
18.0
|
0.8
|
32.0
|
22.0
|
0.8
|
|
225
|
2.2
|
26.0
|
11.0
|
0.8
|
32.0
|
13.5
|
0.8
|
32.0
|
21.0
|
0.8
|
32.0
|
28.0
|
0.8
|
|
335
|
3.3
|
26.0
|
14.0
|
0.8
|
32.0
|
16.5
|
0.8
|
32.0
|
27.0
|
0.8
|
|
|
|
|
475
|
4.7
|
32.0
|
15.0
|
0.8
|
32.0
|
19.0
|
0.8
|
32.0
|
28.0
|
0.8
|
|
|
|
|
685
|
6.8
|
32.0
|
17.5
|
0.8
|
36.0
|
20.0
|
0.8
|
46.0
|
21.0
|
0.8
|
|
|
|
|
106
|
10.0
|
32.0
|
20.0
|
0.8
|
46.0
|
18.0
|
0.8
|
|
|
|
|
|
|
|
126
|
12.0
|
32.0
|
21.0
|
0.8
|
46.0
|
20.0
|
0.8
|
|
|
|
|
|
|
|
156
|
15.0
|
32.0
|
22.0
|
0.8
|
46.0
|
22.0
|
0.8
|
|
|
|
|
|
|
|
186
|
18.0
|
32.0
|
23.0
|
0.8
|
46.0
|
24.0
|
0.8
|
|
|
|
|
|
|
|
226
|
22.0
|
32.0
|
25.0
|
0.8
|
|
|
|
|
|
|
|
|
|
|
256
|
25.0
|
32.0
|
28.0
|
0.8
|
|
|
|
|
|
|
|
|
|
