DIELECTRIC 介質
|
Polypropylene film 聚丙烯薄膜
|
|
ELECTRODES 電極
|
Vacuum evaporated metal 真空蒸鍍金屬
|
|
COATING 包封
|
Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL94V-0
包封阻燃盒子并以環氧樹脂灌封
|
|

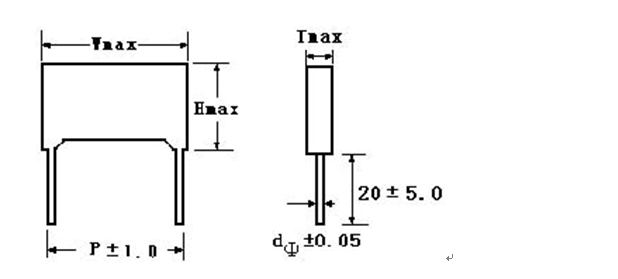

LEADS 導線
|
Radial leads of tinned wire / insulation flexible wire
徑向鍍錫導線或軟導線
|
|

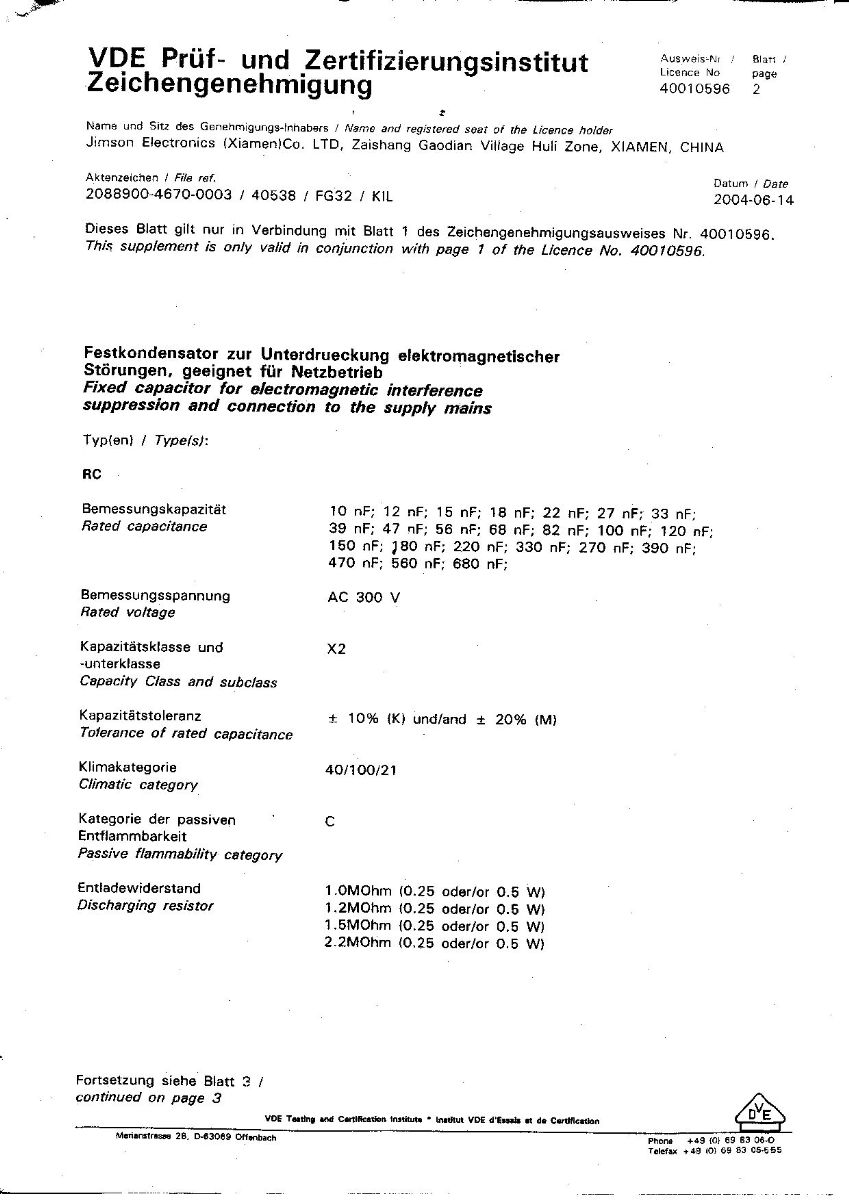

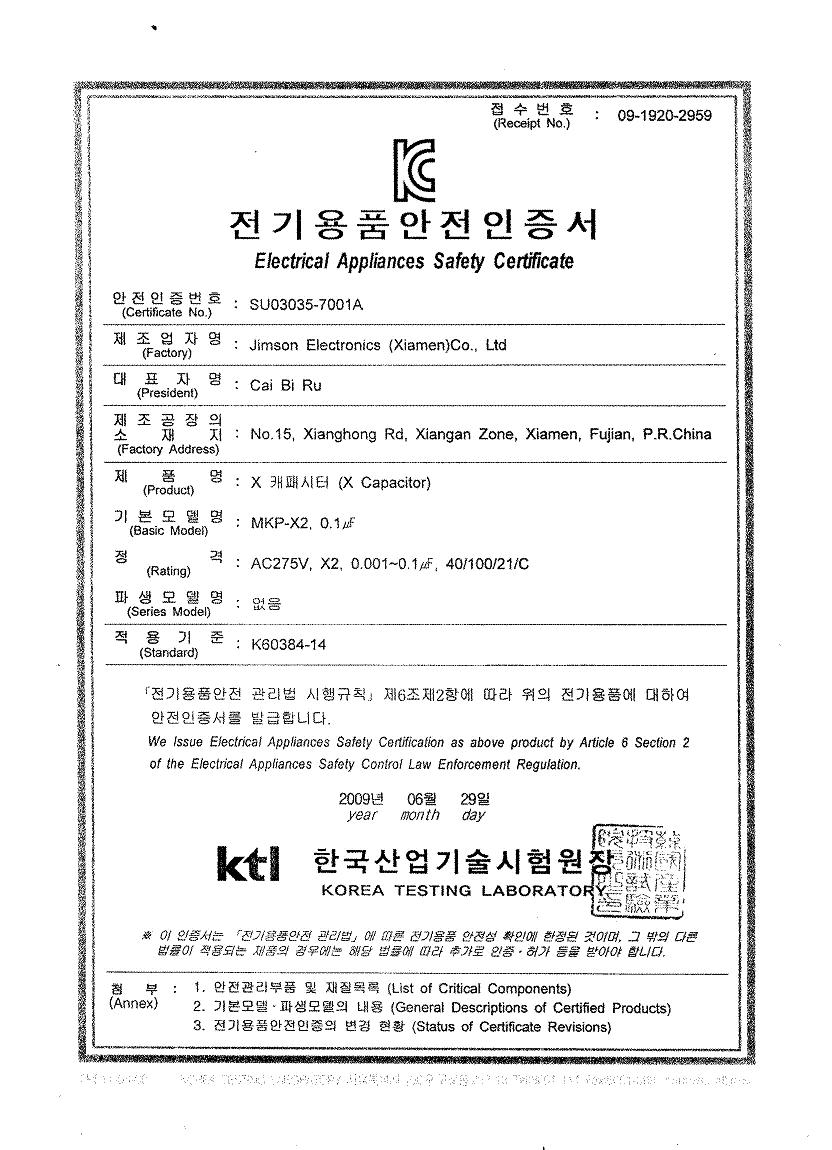

REFERENCE STANDARD 引用標準
|
IEC 384-14 (2nd Edition,1993) UL1414,UL1283,GB/T 14472-1998,EN132400
|
|
CLIMATIC CATALOGUE 氣候類別
|
40/100/21 (GMF)
|
|
CAPACITANCE VERSUSRATED VOLTAGE (UR) 靜電容量與額定電壓
|
0.001µF-2.2µF/275VAC (50/60Hz)
0.001uf-47.7uF/310VAC (50/60HZ)\(UL)
|
|
CAPACITANCE TOLERANCE 靜電容量誤差
|
M=±20% K=±10% J=±5%
|
|
DISSIPATION FACTOR
(TANGENT OF LOSS）散逸因素（損耗角正切）
|
≤ 0.1% (at 20 ℃ , 1KHz)
|
|
VOLTAGE PROOF 耐電壓
|
4.3*UR Unit ：VDC (1minute at 20 ℃)
|
|
INSULATION RESISTANCE 絕緣電阻
|
C ≤ 0.33µF IR ≥ 15,000M?C ＞ 0.33µF IR*C ≥ 5,000S (1minute at 20℃ and RH ≤ 65%)
|
|
ENDURANCE
耐久性
|
The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47 ?±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test：100 ℃試驗溫度下，125%UR 交流電壓1000 小時，試驗過程中，每個電容器串聯一個47? 電阻。1000V 交流電壓（60Hz ），每一小時施加0.1S 驗完成后
△ C/C ≤ 10%; IR ≥ 50% of the specified value( 標稱值）;
△ DF ≤ 0.8%(C ≤ 1µF);
△ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)
|
