★ FEATURE

特點：

• High stability of capacitance and DF versus temperature and frequency.

容量損耗隨溫度頻率具高穩定.

High IR

•高絕緣

Non-inductive construction

無感型結構

High pulse rise rate(du/dt) and suitable  for large   current circuit

高電流爬升速率并適用于大電流回路

★APPLICATION

  用途：

Most suitable for high frequency, large current circuit and s-shaping correction in TVset

電視中S－形校正回路及高頻大電流回路

Widely used in high frequency,high current DC and  pulse circuits  Filter and noise suppression circuit

廣泛應用于高頻、大電流、直流、脈沖回路濾波及噪音抑制回路

   DIELECTRIC

介質

Polypropylene film

聚丙烯薄膜

   ELECTRODES

電極

Aluminum foil

鋁箔極板

 COATING

包封

Epoxy resin coating

環氧樹脂封裝

  LEADS

導線

Radial leads of tinned wire

徑向鍍錫導線

REFERENCE STANDARD

引用標準

IEC 384-13 ；SJ/T 10998-1996

CLIMATIC CATALOGUE

氣候類別

40/85/21

   CAPACITANCE VERSUS

    RATED VOLTAGE(U_R)

     靜電容量與額定電壓

0.001μF-0.47μF/100VDC       0.001μF-0.47μF/250VDC

0.001μF-0.33μF/400VDC；     0.001μF-0.15μF/630VDC

 CAPACITANCE TOLERANCE

 靜電容量誤差

M=±20%  K=±10%  J=±5%

    DISSIPATION FACTOR

  （TANGENT OF LOSS）

   散逸因素（損耗角正切）

 ≤0.1%     （at 20℃,1KHz）

  VOLTAGE PROOF

耐電壓

2.0*UR  Unit:VDC  (1minute at 20℃and RH≤65%)

  INSULATION RESISTANCE

 絕緣電阻

C≤0.10μF, IR≥30000MΩ; C＞0.10μF, IR*C≥5000S

（1minute at 20℃ and RH≤65%）

 ENDURANCE

耐久性

1000 hours with 150% of rated voltage at 85℃.After the tet:

85℃條件下，150%之額定電壓1000小時。試驗完成后：

 △C/C≤2%；△DF≤0.04%

 IR≥50% of the specified value  （標稱值） （20℃ 1KHz）

CAPACITANCE

50/100VDC

250VDC

400VDC

630VDC

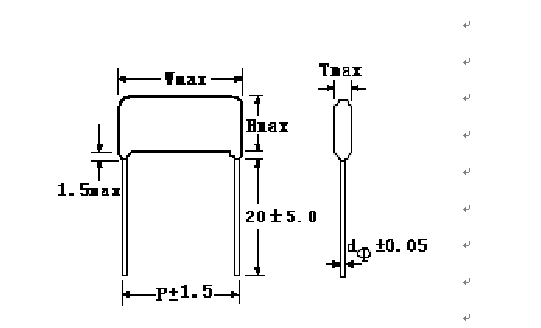

SYMBOL

μF

W

H

T

P

dΦ

W

H

T

P

dΦ

W

H

T

P

dΦ

W

H

T

P

dΦ

102

0.0010

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

11.0

11.0

7.0

7.5

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

12.0

6.5

10.0

0.6

15.0

12.5

7.0

10.0

0.6

152

0.0015

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

10.5

11.0

7.0

7.5

0.6

11.0

11.0

7.0

7.5

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

12.0

6.5

10.0

0.6

15.0

12.5

7.0

10.0

0.6

222

0.0022

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

11.0

11.0

7.0

7.5

0.6

15.0

12.5

7.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

12.0

6.5

10.0

0.6

332

0.0033

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

14.0

13.0

7.0

10.0

0.6

15.0

14.0

7.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0..6

472

0.0047

10.5

10.0

6.0

7.5

0.6

10.5

10.0

6.0

7.5

0.6

14.0

13.0

7.0

10.0

0.6

15.0

14.5

8.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

682

0.0068

10.5

11.0

7.0

7.5

0.6

10.5

11.0

7.0

7.5

0.6

14.0

14.0

7.5

10.0

0.6

15.0

14.5

8.5

10.0

0.6

14.0

9.0

6.0

10.0

0.6

14.0

9.0

6.0

10.0

0.6

103

0.010

11.0

11.0

7.0

7.5

0.6

14.0

9.5

6.5

10.0

0.6

14.0

14.0

8.0

10.0

0.6

19.0

15.0

9.0

15.0

0.8

14.0

9.0

6.0

10.0

0.6

153

0.015

11.0

11.0

7.0

7.5

0.6

14.0

10.0

7.0

10.0

0.6

19.0

14.0

10.5

15.0

0.8

19.0

15.0

10.0

15.0

0.8

14.0

9.0

6.0

10.0

0.6

223

0.022

11.0

12.0

8.0

7.5

0.6

14.0

11.0

8.0

10.0

0.6

19.0

15.0

10.5

15.0

0.8

25.0

16.0

11.0

21.0

0.8

14.0

10.0

6.0

10.0

0.6

333

0.033

14.0

10.5

7.0

10.0

0.6

14.0

12.5

9.5

10.0

0.6

19.0

17.5

11.5

15.0

0.8

25.0

18.0

12.5

21.0

0.8

473

0.047

14.0

11.0

7.5

10.0

0.8

19.0

13.0

9.0

15.0

0.8

19.0

18.0

12.5

15.0

0.8

25.0

20.0

14.0

21.0

0.8

683

0.068

19.0

12.5

8.0

15.0

0.8

19.0

13.0

9.0

15.0

0.8

19.0

18.0

12.5

15.0

0.8

25.0

20.0

14.0

21.0

0.8

104

0.10

19.0

11.0

8.5

15.0

0.8

25.0

18.0

11.0

22.5

0.8

25.0

20.0

15.0

21.0

0.8

31.0

26.0

16.5

27.5

0.8

154

0.15

25.0

15.0

8.5

22.5

0.8

25.0

17.0

12.5

22.5

0.8

31.0

24.5

16.5

27.5

0.8

31.0

28.0

18.0

27.5

0.8

224

0.22

25.0

17.0

9.5

22.5

0.8

31.0

20.0

13.5

27.5

0.8

31.0

26.0

17.5

27.5

0.8

334

0.33

31.0

18.0

12.0

27.5

0.8

31.0

22.0

15.0

27.5

0.8

31.0

21.0

9.0

27.5

0.8

474

0.47

31.0

23.0

14.0

27.5

0.8

31.0

25.0

17.0

27.5

0.8
