★FEATURE

  特點：

• High stability of capacitance and DF versus temperature and frequency

   •容量損耗隨溫度頻率具高穩定性

Special series construction for high voltage and long-term ability

   •特殊的串聯結構適合于高電壓極長期工作可靠性

High pulse rise rate (du/dt) and suitable for large current circuit

   •高電壓爬升速率并適用于大電流回路無感型結構

★APPLICATION

  用途：

• Most suitable for high voltage and pulse in the horizontal resonance circuit of colour TV set

   •適用于彩電的高壓、脈沖電路

 DIELECTRIC

介質

Polypropylene film

聚丙烯薄膜

 ELECTRODES

 電極

Aluminum foil as outer electrodes and vavuum evaporated metal layer as inner series electrode

鋁箔作外露極板，真空蒸鍍金屬作內部串聯電極

 COATING

包封

Epoxy resin coating

環氧樹脂封裝

 LEADS

導線

Radial leads of tinned wire

徑向鍍錫導線

 REFERENCE STANDARD

引用標準

IEC 384-17； GB 14579-1993

  CLIMATIC CATALOGUE

氣候類別

40/85/21

     CAPACITANCE VERSUS

      RATED VOLTAGE(U_R)

      靜電容量與額定誤差

 0.001µF-0.10µF/1000VDC；  0.001µF-0.047µF/1600VDC;

 0.001µF-0.022µF/2000VDC

    CAPACITANCE TOLERANCE

     靜電容量誤差

M=±20%  K=±10%  J=±5%

DISSIPATION FACTOR

(TANGENT OF LOSS)

散逸因素（損耗角正切）

≤0.10% （at 20℃, 1KHz）

  VOLTAGE PROOF

耐電壓

 2.0*U_R   Unit:VDC  ( 1 minute at 20℃)

INSULATION RESISTANCE

絕緣電阻

 C≤0.1μF；IR≥30000MΩ

C＞0.1μF；IR*C≥5000S(1minute at 20℃and RH≤65%)

 ENDURANCE

 耐久性

1000 hours with 125% of rated voltage at 85℃.After the test:

85℃條件下，125%之額定電壓1000小時，試驗完成后：

 △C/C≤10%； △DF≤0.3%

 IR≥50% of the specified value （標稱值） 。 (20℃ 1KHz)

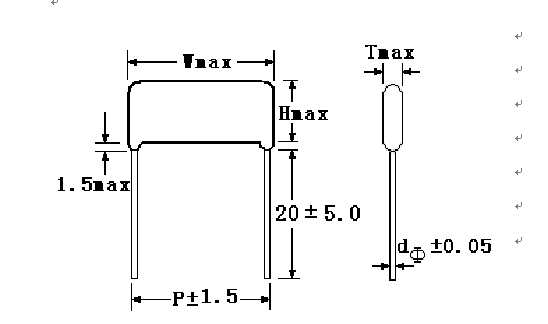

CAPACITANCE

          1000VDC

       1600VDC

       2000VDC

SYMBOL

μF

W

H

T

P

dΦ

W

H

T

P

dΦ

W

H

T

P

dΦ

102

0.0010

19.0

14.0

10.0

15.0

0.8

19.0

15.0

11.0

15.0

0.8

24.0

16.0

11.0

20.0

0.8

24.0

15.0

10.0

20.0

0.8

152

0.0015

19.0

14.0

10.0

15.0

0.8

19.0

16.0

12.0

15.0

0.8

24.0

16.0

11.0

20.0

0.8

24.0

15.0

10.0

20.0

0.8

222

0.0022

19.0

14.0

10.0

15.0

0.8

19.0

17.0

13.0

15.0

0.8

24.0

17.0

12.0

20.0

0.8

24.0

15.0

10.0

20.0

0.8

332

0.0033

19.0

14.0

10.0

15.0

0.8

24.0

16.0

12.0

20.0

0.8

24.0

17.0

12.5

20.0

0.8

472

0.0047

19.0

15.0

11.0

15.0

0.8

24.0

16.0

12.5

20.0

0.8

24.0

18.0

13.0

20.0

0.8

682

0.0068

19.0

16.0

12.0

15.0

0.8

24.0

16.5

12.5

20.0

0.8

24.0

18.0

13.5

20.0

0.8

24.0

14.0

10.0

20.0

0.8

822

0.0082

19.0

17.0

13.0

15.0

0.8

24.0

17.0

13.0

20.0

0.8

24.0

18.5

14.0

20.0

0.8

103

0.010

24.0

15.0

10.0

20.0

0.8

24.0

18.0

13.0

20.0

0.8

31.0

19.0

14.0

27.5

0.8

153

0.015

24.0

16.0

11.0

20.0

0.8

31.0

20.0

15.0

27.5

0.8

31.0

18.5

11.0

27.5

0.8

223

0.022

24.0

18.5

12.0

20.0

0.8

31.0

22.5

17.0

27.5

0.8

31.0

25.0

17.5

27.5

0.8

333

0.033

31.0

20.5

14.0

27.5

0.8

31.0

25.0

19.0

27.5

0.8

473

0.047

31.0

24.0

16.0

27.5

0.8

31.0

28.0

20.0

27.5

0.8

683

0.068

31.0

28.0

17.0

27.5

0.8

104

0.10

31.0

30.5

18.5

27.5

0.8
